ATEX Series - Broadcasting System
Versions - Analogue or VoIP SIP
Model: JREX101-HB
Call Us: 555-555-1234
The ATEX Certified IP66 Weatherproof Industrial Broadcasting Series Telephone with optional ATEX certified LED beacon, loud horn and junction box, for use in; Petrochemicals, Oil and Gas Platforms, Power Stations, Tunnels, Military, Dockyards, Ships, Chemical Plants, Universities, Production Factories, Oil Refineries, Mines, Power Plants, Generation Facilities, Paint and Varnish Manufacturing Plants,...
----- Zone Classifcation -----
Certificated for use in Hazardous areas of Gas Group IIB/IIA - Zone classification: Zone 1, Zone 2 and Zone 22 - Ex ’d’ protected - Intrinsically safe Ex”ib” certified - Temperature classification:T6
II 2G Ex e ib [ib] mb IIC T6 Gb
II 2D Ex ib [ib] tb IIIC T80 °Db
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22
Broadcasting Features
Explosion Proof Beacon
Suitable for explosive gas environment Zone 1 and Zone 2 / Suitable for IIA,IIB,IIC explosive gas environment / Suitable for Hazardous dust area: Zone 20, Zone 21, Zone 22. Can be used in the environment of temperature groups T1~T4 / Conforms to: G3B3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079/ Ex-proof Mark: Exd II BT4 Gb, DIP A21 TA, T4
Explosion Proof Horn
The explosion-proof horn meets GB3836.1-2000, GB3836.2-2000. Explosion-proof mark ExdⅡCT6:IP65
Explosion Proof Connection Box

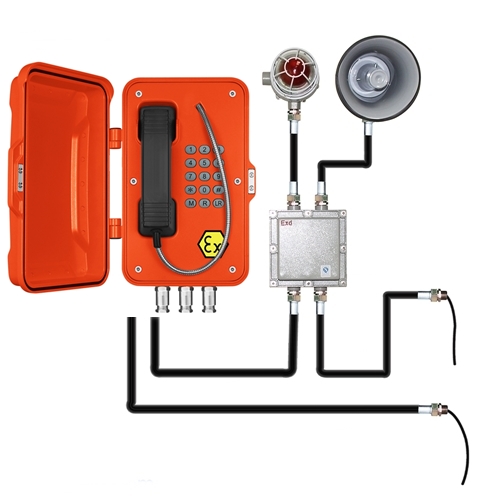

Complete ATEX Weatherproof Broadcasting System
IP67 rated telephone with optinal external horn sounder, LED flashing call beacon and junction box. The system provides exeptional call alertinging and broadcasting functions within harah noisy industrial environments. The telephone is available in the following models; Analogue, VoIP SIP.
ATEX Classification
For explosive gas atmospheres Zone 1 and Zone 2 - II 2G Rx e ib [ib] mb IIC T6 Gb, III 2D Ex ib [ib] tb IIIC T135 °, -40 °C ≤ Ta ≤ +60 °C/+40°C, Zone 1, 2, 22. For explosive atmosphere; IIA, IIB. For dust; Zone 20, Zone 21 and Zone 22.)
IP66 Weatherproof Telephone
ATEX Series Telephones are designed for use in hazardous and demanding environments, the telephone enclosure provides extra protection from the ingress of dust, dirt and fibres as well as resistance against the harmful and corrosive effects of water spray, rain, sleet or snow. Suitable for temperature class :T1 ~ T6, between -40 to +60 deg C. The loud ringer with quality clear audio is adjustable up to 95dB (VoIP / SIP) and 80-85 DB (Analogue). Additional external ATEX horn speaker (110DB@1m) and LED flashing beacons can be specified for use in extreme ambient noise zones. The weatherproof IP66 rating conforms to EN60529, guarantees optimum performance in uncompromising environments. Full duplex, high quality acoustic properties, programmable by DTMF or via web interface (Version Dependent) to ensure optimum locational performance.Robust and Vandal Resistant
Impact protection IK10 in accordance to EN50102, housed within corrosion resistant aluminium alloy die cast, with NPT conduit entries, a unique external telephone compromising off a robust handset, steel armoured cable and anti-tamper fixings. The rugged telephone is ideal for placing within heavy Industrial and Emergency locations and can be mounted to either a wall, pillar or post (see our range).
Full Keypad
Large rubber buttons for ease of use whilst wearing gloves. Numbers 0-9 with a 9 memory auto speed-dial (on demand), "LR" button for last number redial, "R" for flash recall and "M" for muting.
Optional Door Enclosure
The telephone is available with or without a door. The IP66 rating is guaranteed when ther door is open. The door provides extra protection against dirt ingress and eleviates potentioal for miss use or vandalism.
Internal Relay's - Controlled by Operators Telephone Keypad
Option for two internal relays with the VoIP telephone. The analogue version can be customised to include 2 relays upon request. Enter a PIN code via telephone keypad to open door or gate, sound an alarm, switch on a camera or light etc.
Disable Assistance Fitted Hearing Loop Technology
Induction Loop Technology is fitted to the telephone handset as standard to assist hard of hearing users.
Simple to Setup and Maintain
Programming by way of DTMF for Analogue Networks and powered by Analogue Line. The VoIP SIP version is powered by PoE and programmed via web interface.
Choice of Colours
Industrial high-performance epoxy powder coating in RAL colours. Red as standard, however, other colours are available such as; yellow, blue or orange.
Need a Free Standing or Mounted Option?
Free-Standing options available with the ATEX Series Telephones with option for pillar or post mounting.
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Standard Analogue Telephone Line |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker |
| Dialling Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | Idle:1.5W-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full Duplex |
| Ringer volume | 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| Explosion Protection: | |
| Conforms To | II 2G Ex e ib [ib] mb IIC T4 Gb III 2D Ex ib [ib] tb IIIC T135 ° -40 °C ≤ Ta ≤ +60 °C/+40°C Zone 1, 2, 22 |
| Features | |
| Casing Material | Die cast aluminium, epoxy powder coated. |
| Handset | With noise cancelling microphone, for effective communication for noisy areas. Armoured SS cord stands up to rough treatment, option for black curly cord. |
| Keypad | Weather resistant full Keypad, No.of keys:0-9, *, #, Redial, Mute, Last Number Redial |
| Ringing Tone | Built-in External Ringer that provides penetrating calling signal (80db - 95A@1meter, version dependant) |
| Hook switch | Electronic / magnetic with no visible moving parts |
| Ambient Conditions | |
| Lightning / Transients | Protection to ITU-T k.21 enhanced levels |
| Protection Type | IP67, Conforms to EN60529 |
| Operating Temperature | -40°C to +60°C |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours in use |
| Unit Size: | 204 *334 *126(mm) |
| Gross Weight | 8KG |
Telephone Zone classification: For explosive gas atmospheres; Zone 1 and Zone 2. For explosive atmospheres; IIA, IIB.For dust; Zone 20, Zone 21 and Zone 22. II 2G Rx e ib [ib] mb IIC T6 Gb, III 2D Ex ib [ib] tb IIIC T135 °, Certificated for use in Hazardous areas of Gas Group - IIB/IIA. Ex ’d’ protected, Intrinsically safe Ex”ib” certified.
